Bilton Precision Vee Blocks Size 2 90 x 57 x 57mm

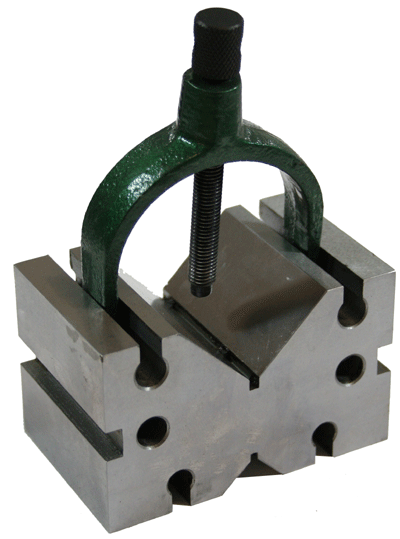

Bilton Precision Vee Blocks Size 2

All sizes of Bilton Vee Blocks are made from high grade hardened steel, ground to within 0.0002" (0.005mm) for flatness, parallelism and centrality of the vees to the end faces. All vee faces are at 90º to each other and are parallel to the end faces, and all side are at right angles.

Features:

Two clearance holes (5/16"), in the long face for bolting through to a Face Plate or Angle Plate, and a clamping ledge is provided in each short face. Two vees and two pairs of forged clamps.

Dimensions (approximate)

Length 89.0mm

Width 57.2mm

Height 57.2mm

Vee Capacity

Large 54mm Dia 44mm across vee

Small 25.5mm Dia 18mm across vee

Part Number BVB-2
