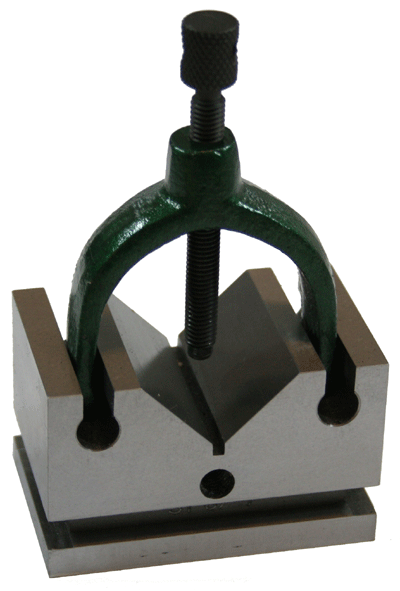

Bilton Precision Vee Blocks Size 1
All sizes of Bilton Vee Blocks are made from high grade hardened steel, ground to within 0.0002" (0.005mm) for flatness, parallelism and centrality of the vees to the end faces. All vee faces are at 90º to each other and are parallel to the end faces, and all side are at right angles.
Features:
Two tapped holes (1/4" BSF), one in the long side and one in the centre of the base, for quick setting to any angle on a Machine Table, Lathe Face Plate or Angle Plate. A clamping ledge is provided on all four faces. Single vee and one pair of forged clamps.
Dimensions (approximate)
Length 63.5mm
Width 41.3mm
Height 41.3mm
Vee Capacity 35mm Dia
Part Number BVB-1
